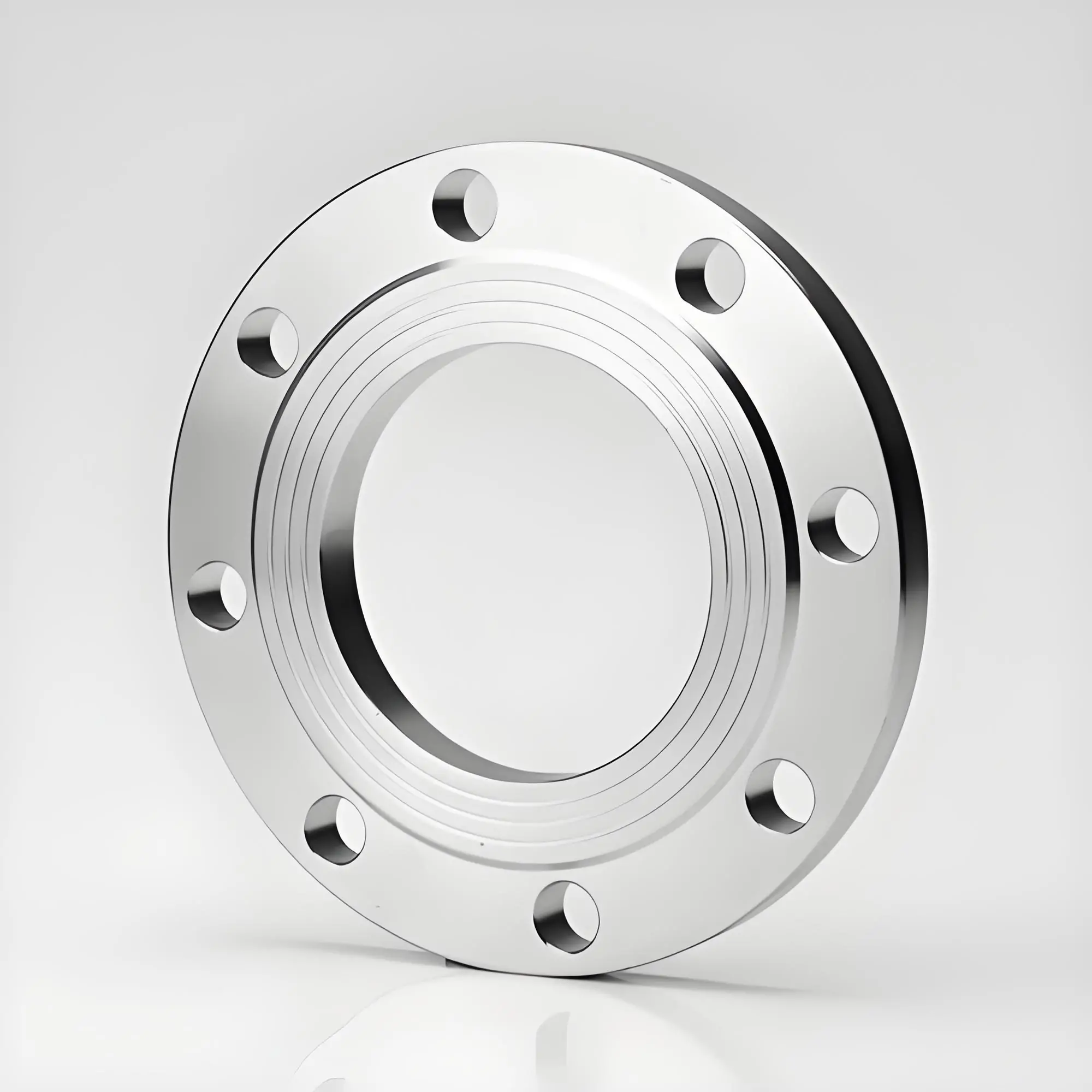

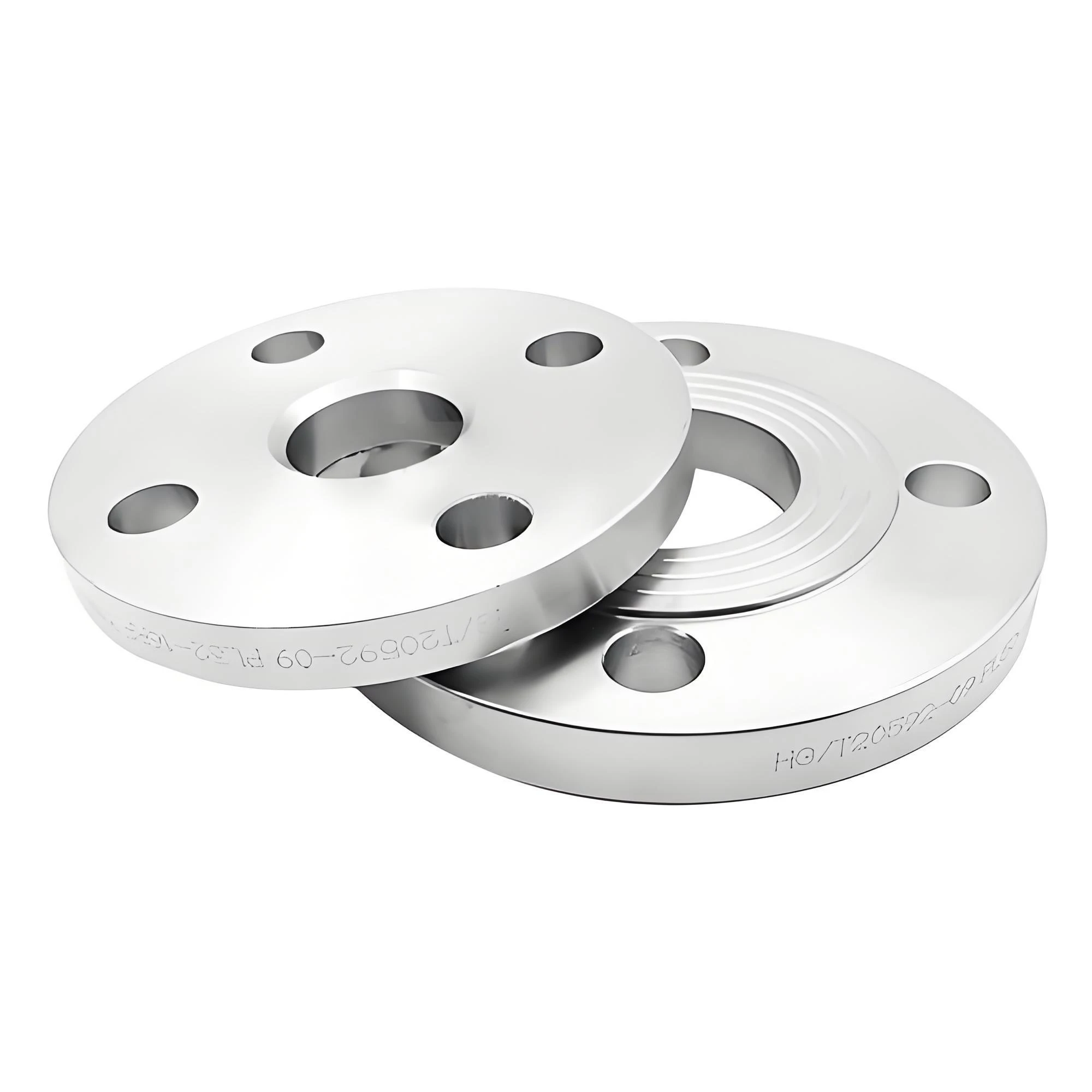

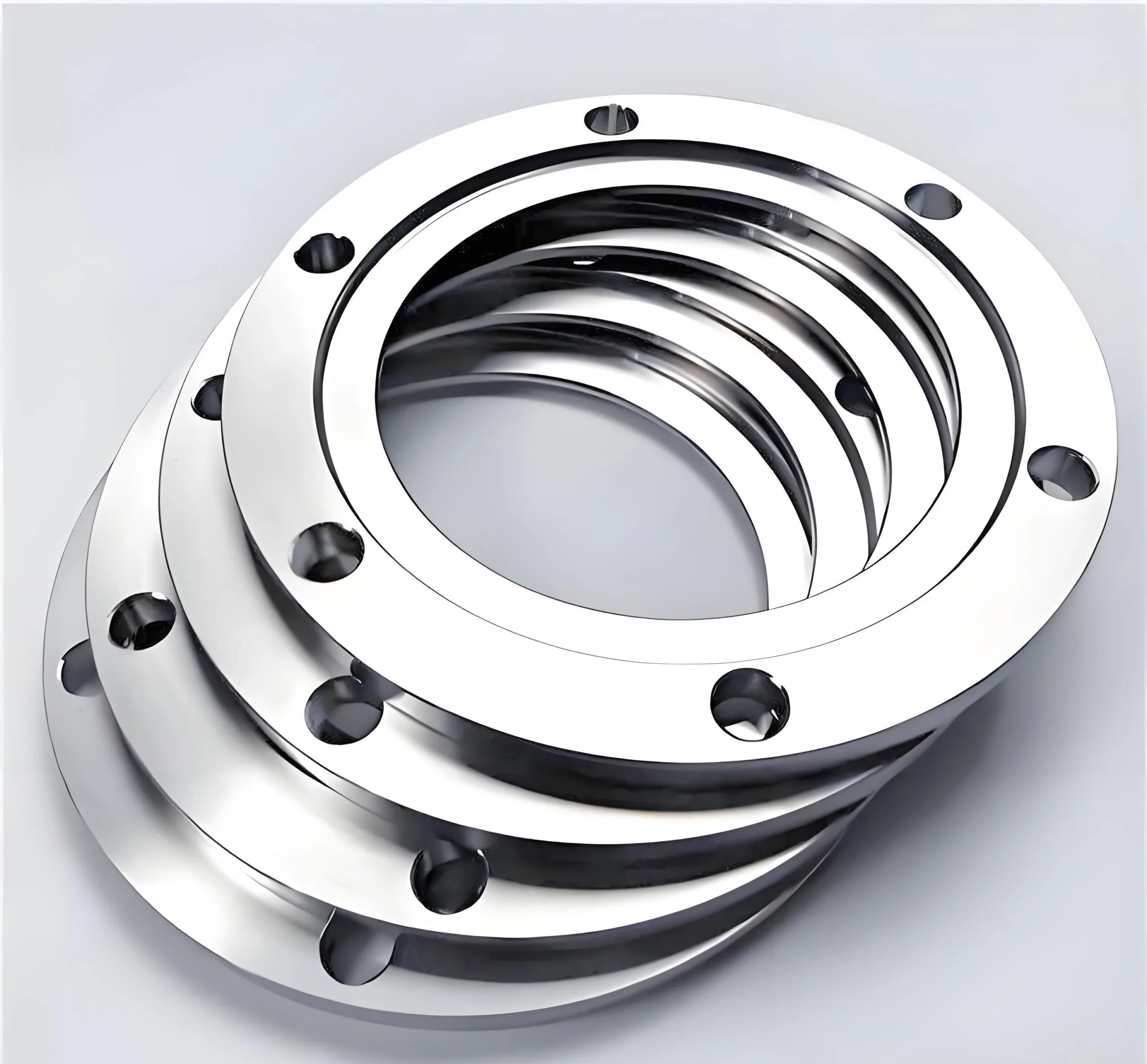

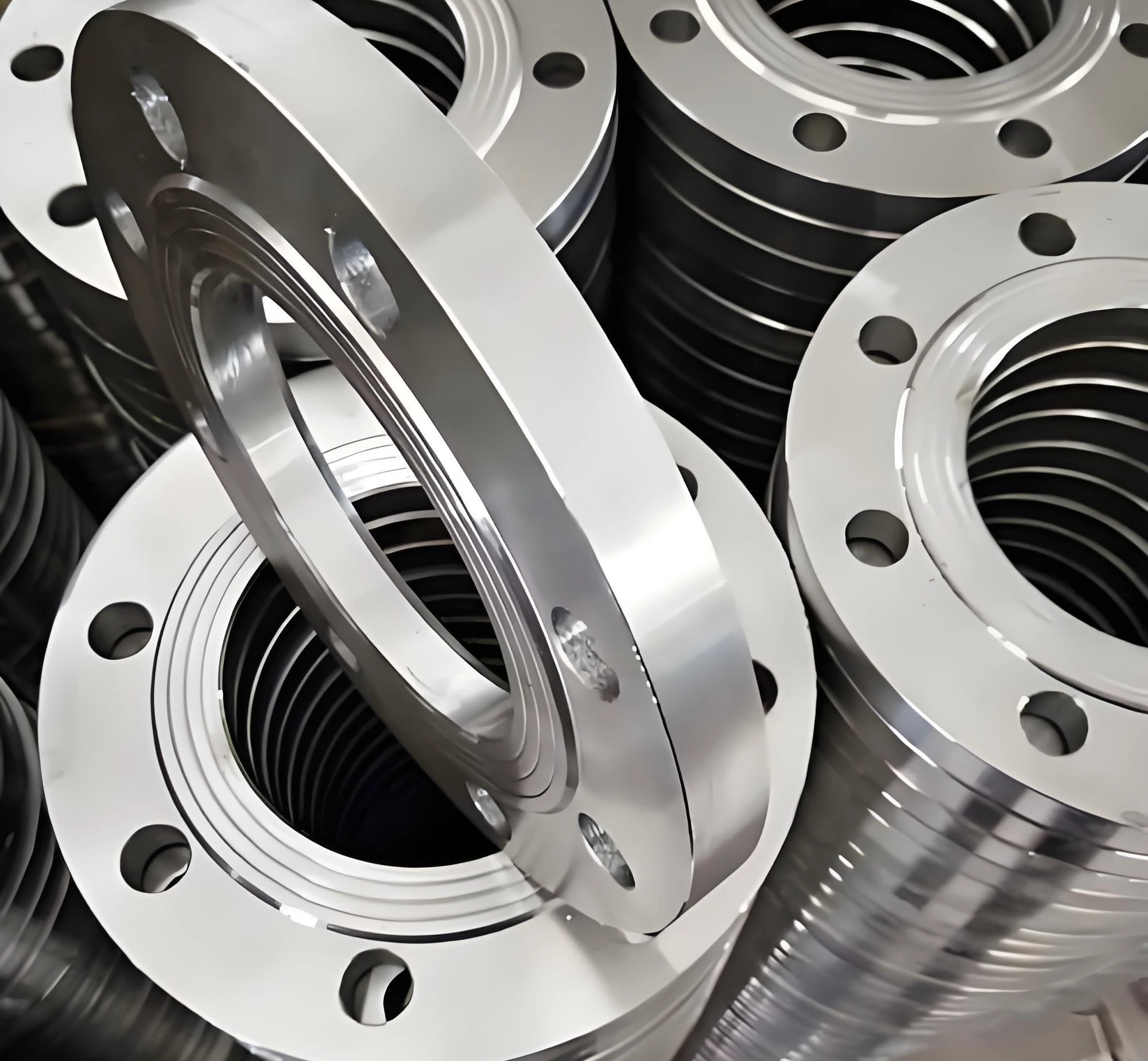

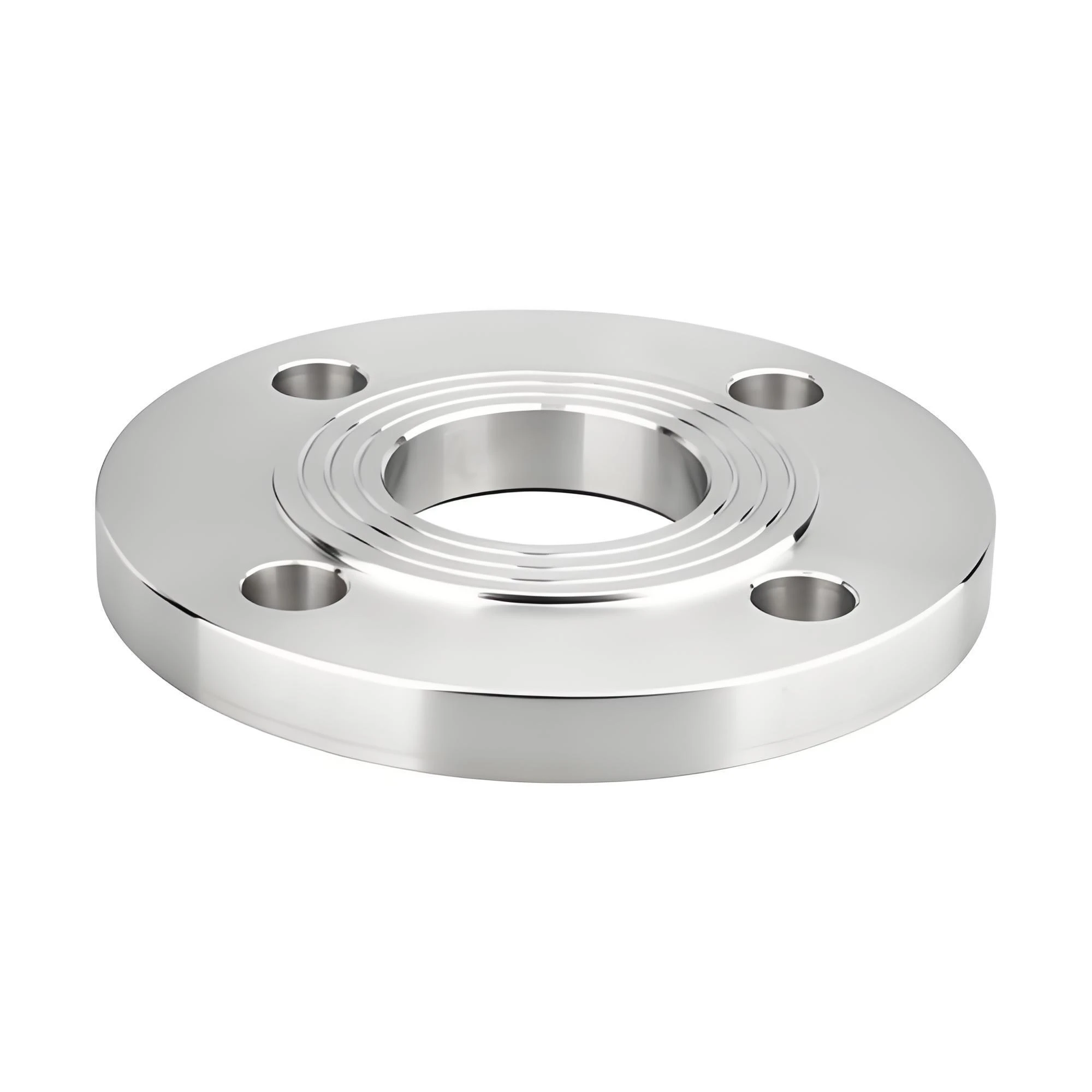

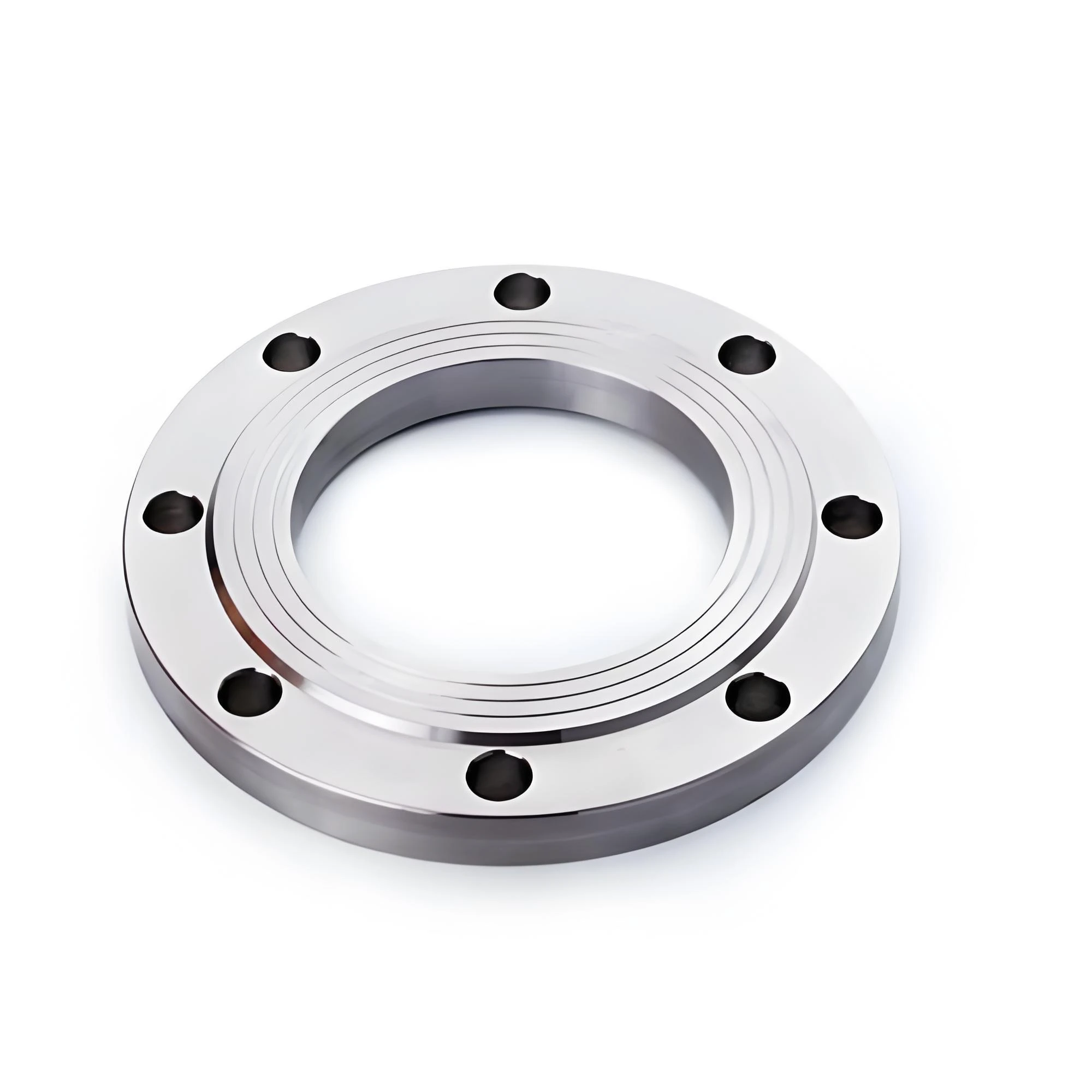

Steel Plate Flange is a pipe connection component manufactured by cutting and machining high-quality steel plates. It is widely used in industries such as petroleum, chemical engineering, power generation, shipbuilding, water supply and drainage, and mechanical manufacturing. Its primary function is to provide a reliable connection between pipes, valves, pumps, and equipment, facilitating system installation, disassembly, and maintenance.
- Materia: ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
- Size: 1/2″ (15 NB) to 48″ (1200NB)
- Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Introduction
Steel plate flanges are typically manufactured from carbon steel, stainless steel, or alloy steel, and feature a simple structure, high strength, excellent load-bearing capacity, and stable sealing performance. The products can be designed and manufactured according to international or industry standards (such as ANSI, ASME, DIN, EN, GB, etc.) to meet the requirements of different working conditions, and are suitable for medium-low pressure and some high-pressure applications.
When used in conjunction with gaskets and fasteners, steel plate flanges effectively prevent media leakage, ensuring the long-term, safe, and stable operation of pipeline systems.
DHX provides customers with a one-stop pipeline solution, from product selection and design support to manufacturing and delivery. We meet diverse project needs with professional technology and reliable quality. Please feel free to contact us for more technical support and cooperation information.
Specifications
| Material | Stainless Steel Flange，Carbon Steel Flange，Carbon Steel Flange，Carbon Steel Flange | |
| Standard | ANSI, ASME, DIN, BS, JIS, GB, ISO etc | |
Type | Welding Neck Flange, Slip On Flange, Blind Flange, Lap Joint Flange, Socket Welding Flange, Threaded Flange, Flat Flange, Long Welding Neck Flange，etc | |
| Surface treatment | Apply anti-rust oil, Epoxy-coated, Hot-dippe galvanized, Electrical galvanized, Yellow lacquer | |
Heat Treatment | Carbon steel | Normalizing |
| Stainless steel | Treatment with solid solving | |
| Alloy steel | Normalizing+Tempering,Quenching | |
| Connection | Welding,Threaded | |
Package | 1: Standard export packaging (Plywood case of outside, plastic cloth of inside).2: As customers’ requirements | |
Application areas | Machine Building, Pressure vessel, Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry and general pipes connecting projects etc… | |
