Reliable Seamless & Welded Pipe Fitting Solutions

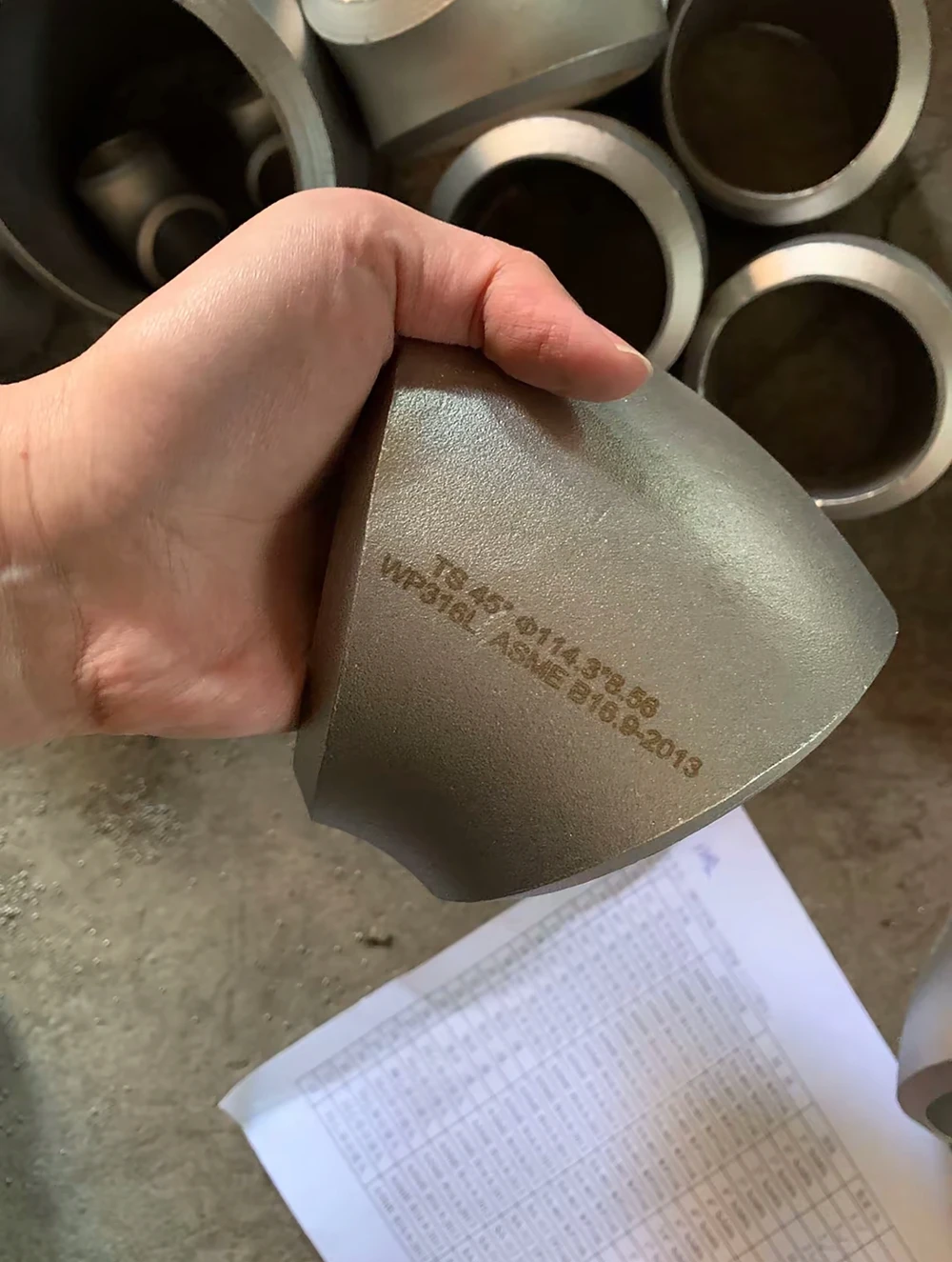

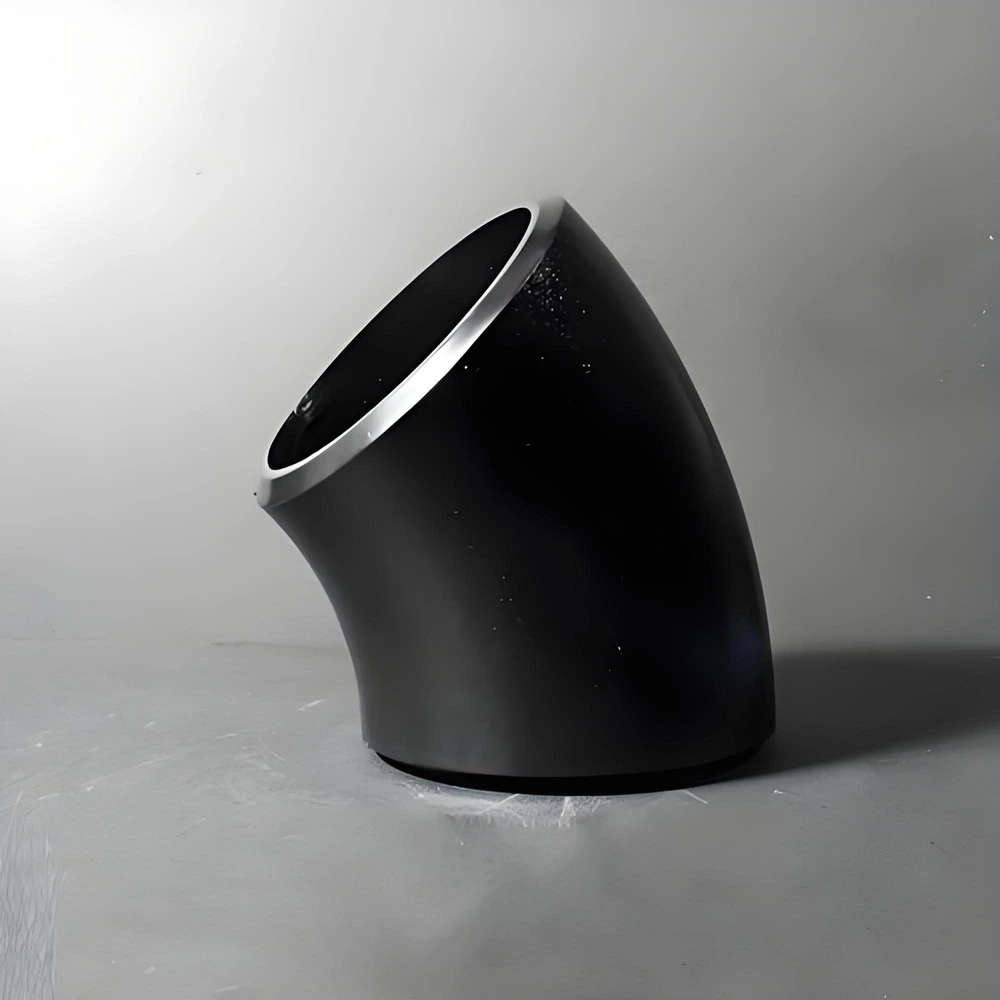

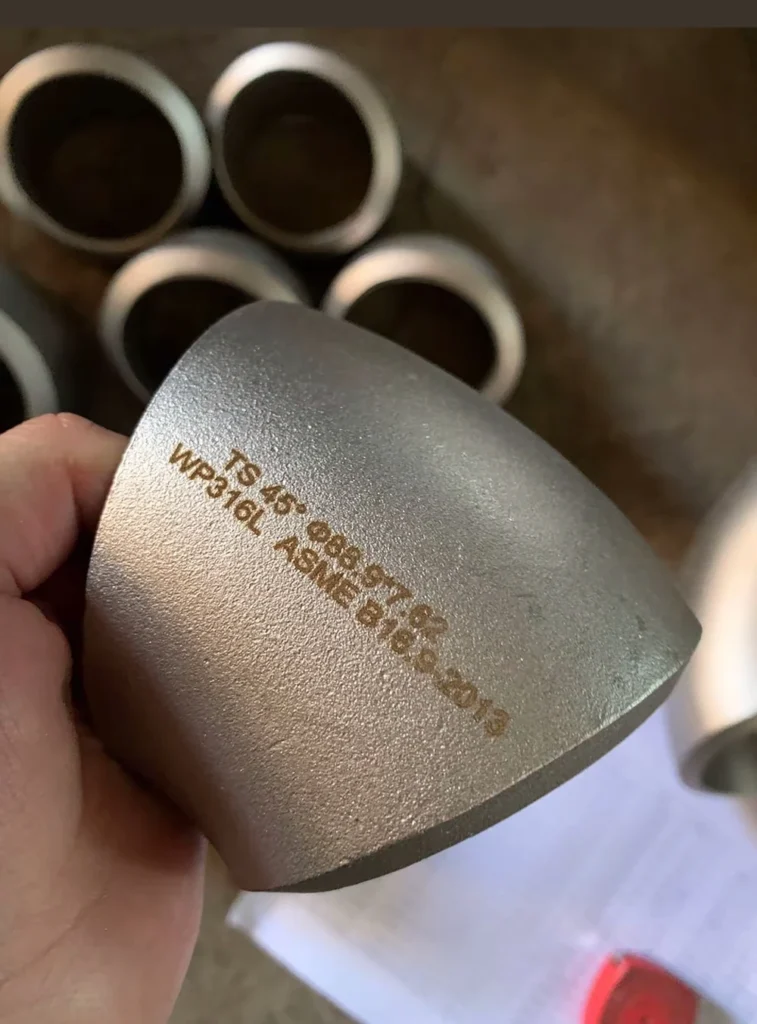

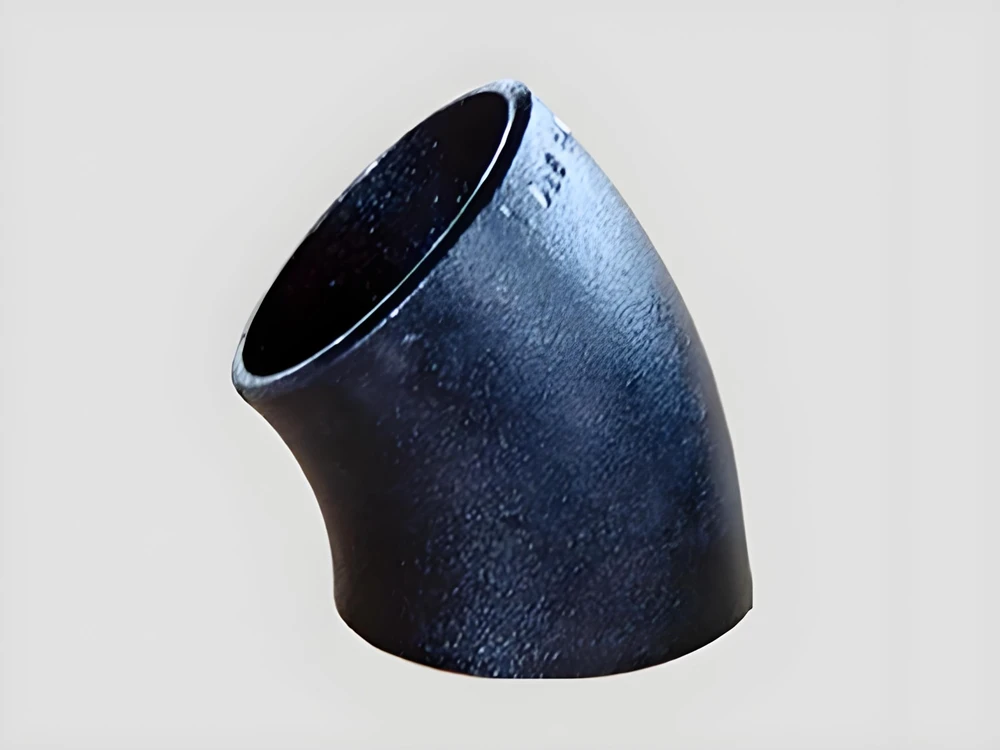

The Steel Pipe 45° Elbow is a critical pipe fitting used to change the flow direction of pipelines at a 45-degree angle, reducing pressure loss while maintaining smooth fluid transmission. It is widely applied in oil & gas, chemical processing, power generation, water treatment, and other demanding industrial systems.
Manufactured using advanced forming technologies and strict quality control, our 45° Elbow delivers excellent strength, corrosion resistance, and dimensional accuracy, ensuring long-term and stable performance in harsh working environments.
- Manufacturing Technology: Seamless & Welded
- Material Options: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel
- Applicable Standards: ASME, GB, DIN, GOST, JIS
Introduction
Our Steel Pipe 45° Elbow is designed to meet international pipeline engineering requirements, offering a precise bending angle and smooth internal surface to minimize turbulence and erosion. Seamless elbows are ideal for high-pressure and critical applications, while welded elbows provide flexible size ranges for large-diameter pipeline systems.
With multiple radius options (short radius and long radius) and wall thickness selections, this Steel Pipe 45° Elbow can be adapted to various operating pressures, temperatures, and media conditions. Optional anti-corrosion coatings further extend service life in aggressive environments.
Technical Specifications of Steel Pipe 45° Elbow
To ensure the Steel Pipe 45° Elbow perfectly matches your project requirements, DHX provides comprehensive customization services and full technical support. Our engineering team assists with material selection, size matching, pressure rating confirmation, and coating solutions based on your application conditions and industry standards.
OEM and ODM services are available, and all products can be manufactured according to drawings, specifications, or special performance requirements. From material testing to final inspection, DHX ensures every Steel Pipe 45° Elbow meets strict quality and safety standards.
Steel Pipe 45° Elbow Specifications
| Item | Specification |
|---|---|
| Product | 45° Elbow |
| Manufacturing Technology | Seamless; Welded |
| Seamless Size Range | DN15 – DN1200 |

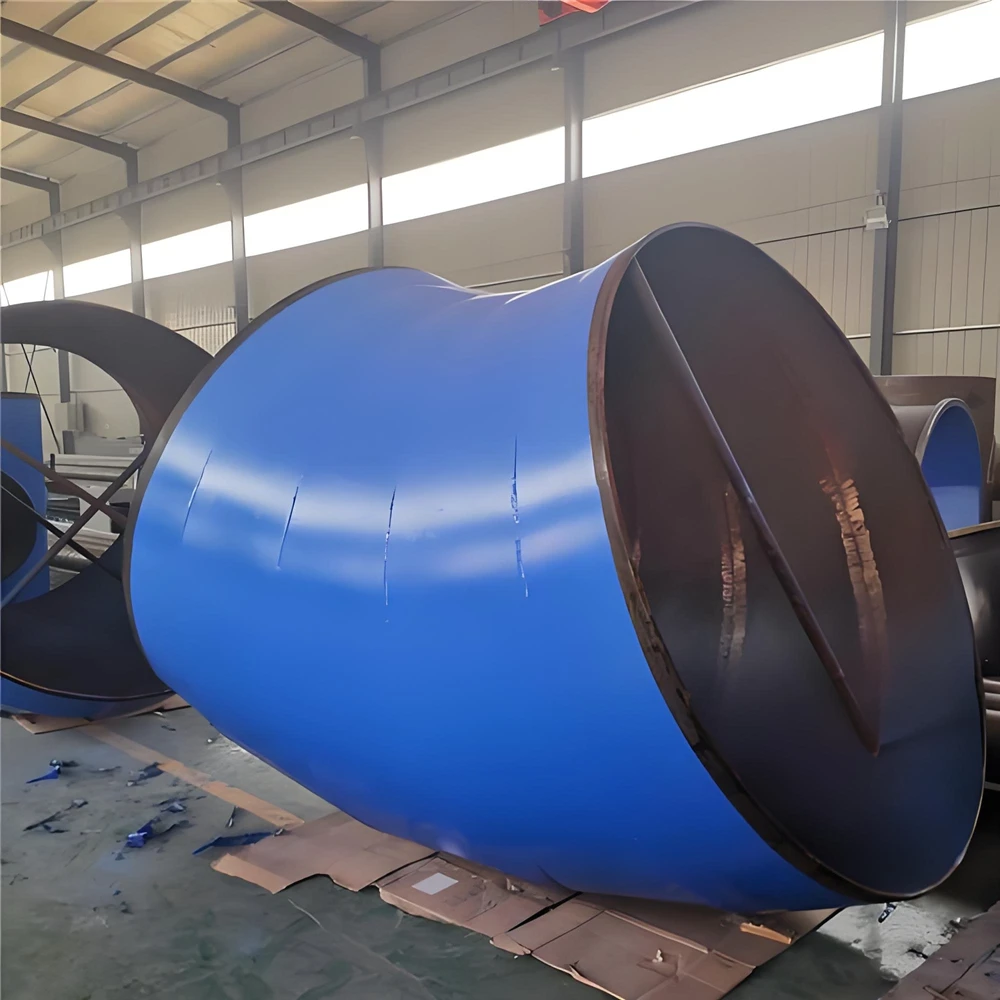

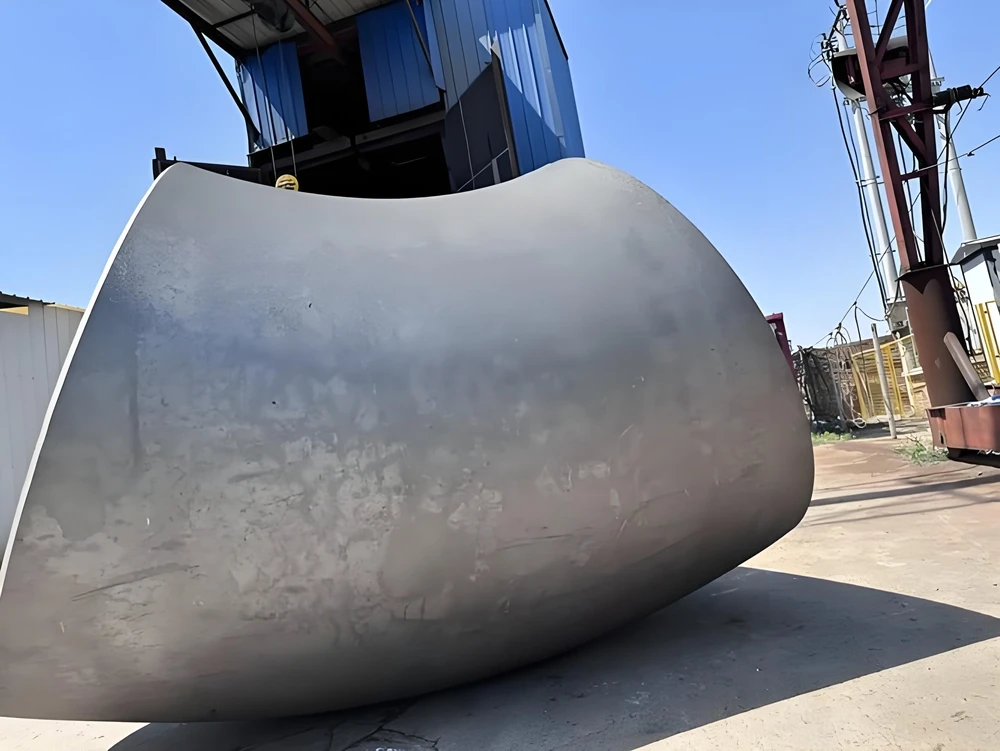

| Welded Size Range | DN200 – DN2000 |
| Wall Thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100, SCH120, SCH160, XS, XXS, High Thickness up to 150mm |
| Radius Options | 1D, 1.5D, 2D, 2.5D, 3D, 4D, 5D, 6D, 10D |
| Materials | A234-WPB; A420-WPL3 / WPL6; WP5; WP9; WP11; WP22; API 5L X42/X46/X52/X56/X60/X65/X70/X80 (NS/MS); WP304/L; WP316/L; S31803; 2205 |
| Compliance | NACE MR-0175 |
| Standards | ASME B16.9; GB 12459; DIN 2615; GOST 17375; JIS B2311 |
| Surface Coating | Anti-corrosive Paint; 3LPE Coating; Hot-Dip Galvanized; Electro-Plating |
| Inspection & Testing | Chemical Analysis; Mechanical Properties; Metallographic Test; HIC / SSC; Heat Treatment; UT; PT; MT; RT (X-Ray); Hydraulic Pressure Test; Blasting Test |
| Applications | Water Treatment; Electric Power; Chemical Engineering; Shipbuilding; Nuclear Energy; Waste Treatment; Natural Gas; Petroleum & Oil |
| Customization | Fully customizable according to customer requirements |
Product Features & Benefits
High-Quality Materials
Manufactured from premium carbon steel, alloy steel, stainless steel, or duplex steel, the steel 45° Elbow ensures excellent durability, corrosion resistance, and long service life.
Flexible Customization Options
Supports OEM and ODM services, allowing customization in size, material, thickness, radius, coating, and inspection requirements to meet specific project needs.

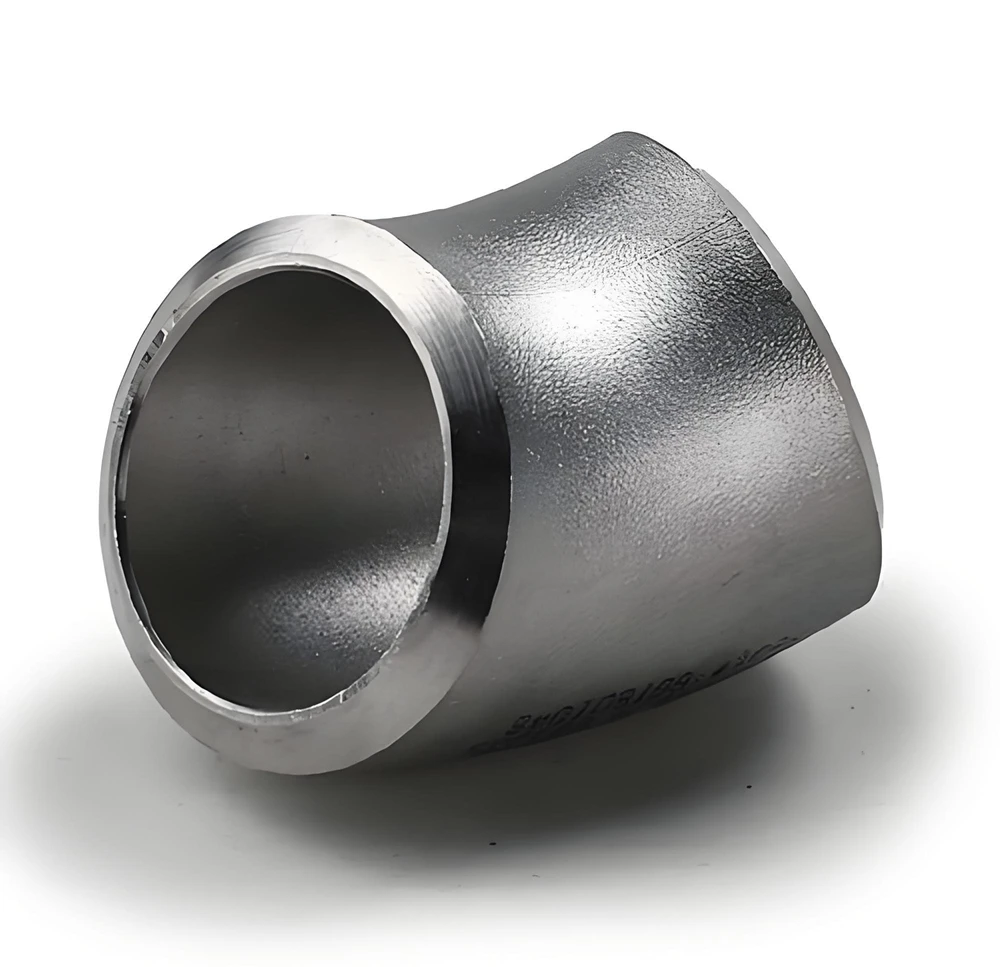

Polished Surface Finish
Featuring a polished surface treatment, this steel 45° Elbow offers a smooth, visually appealing finish that also helps reduce internal friction and improve flow efficiency.
Multi-Standard Compliance
Designed and manufactured in strict accordance with ASME, GB, DIN, GOST, and JIS standards, ensuring precision, reliability, and compatibility across global projects.
Excellent Mechanical Performance
The Steel Pipe 45° Elbow is made from high-performance materials with superior strength, toughness, corrosion resistance, and thermal conductivity, making it an ideal solution for a wide range of industrial pipeline applications.
Get a Quote Now
We offer butt-welded pipe fittings, steel pipes, and flanges in various materials and specifications to meet diverse pipeline engineering requirements. Our experienced technical team provides effective solutions tailored to your specific needs. Contact us today for a quote and consultation!
