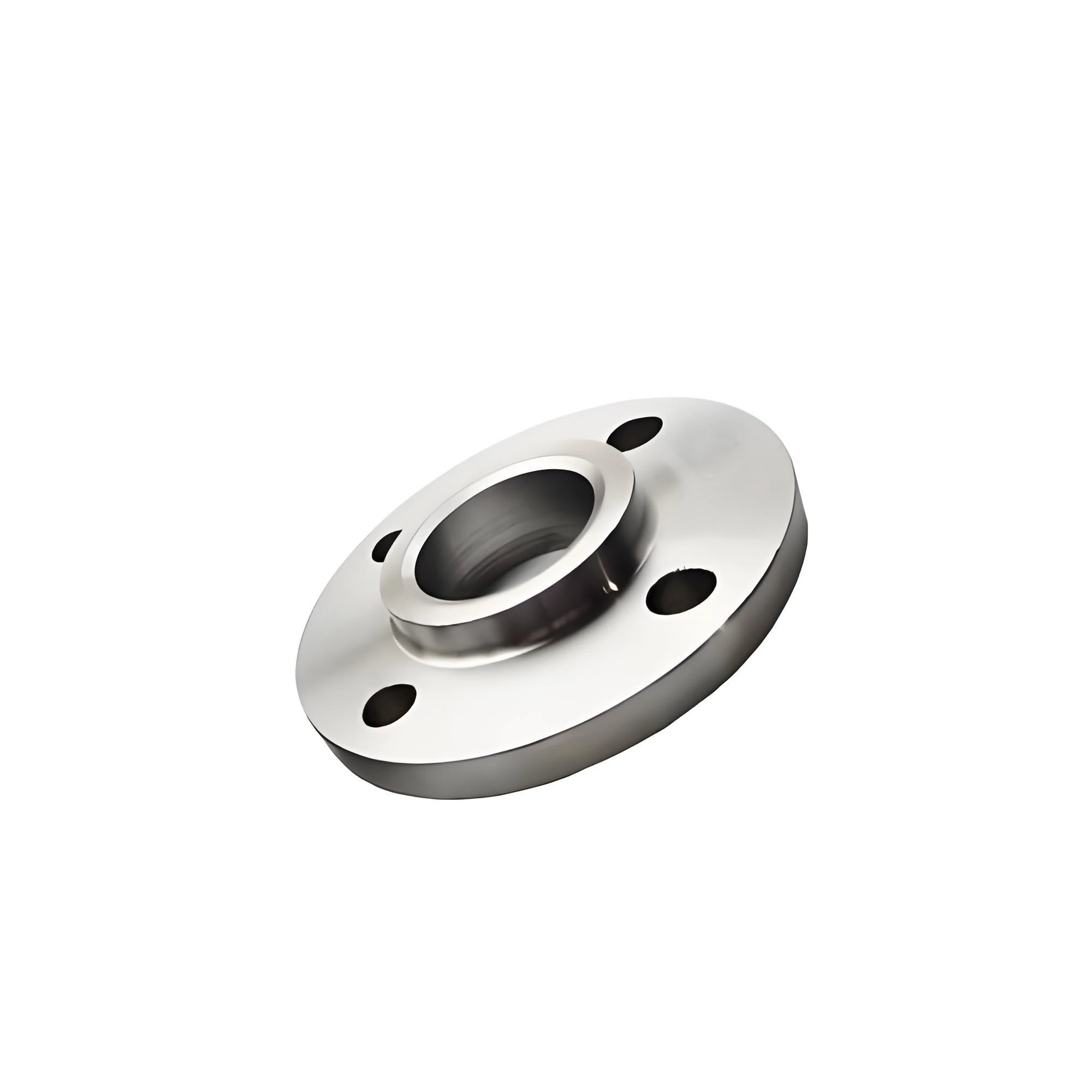

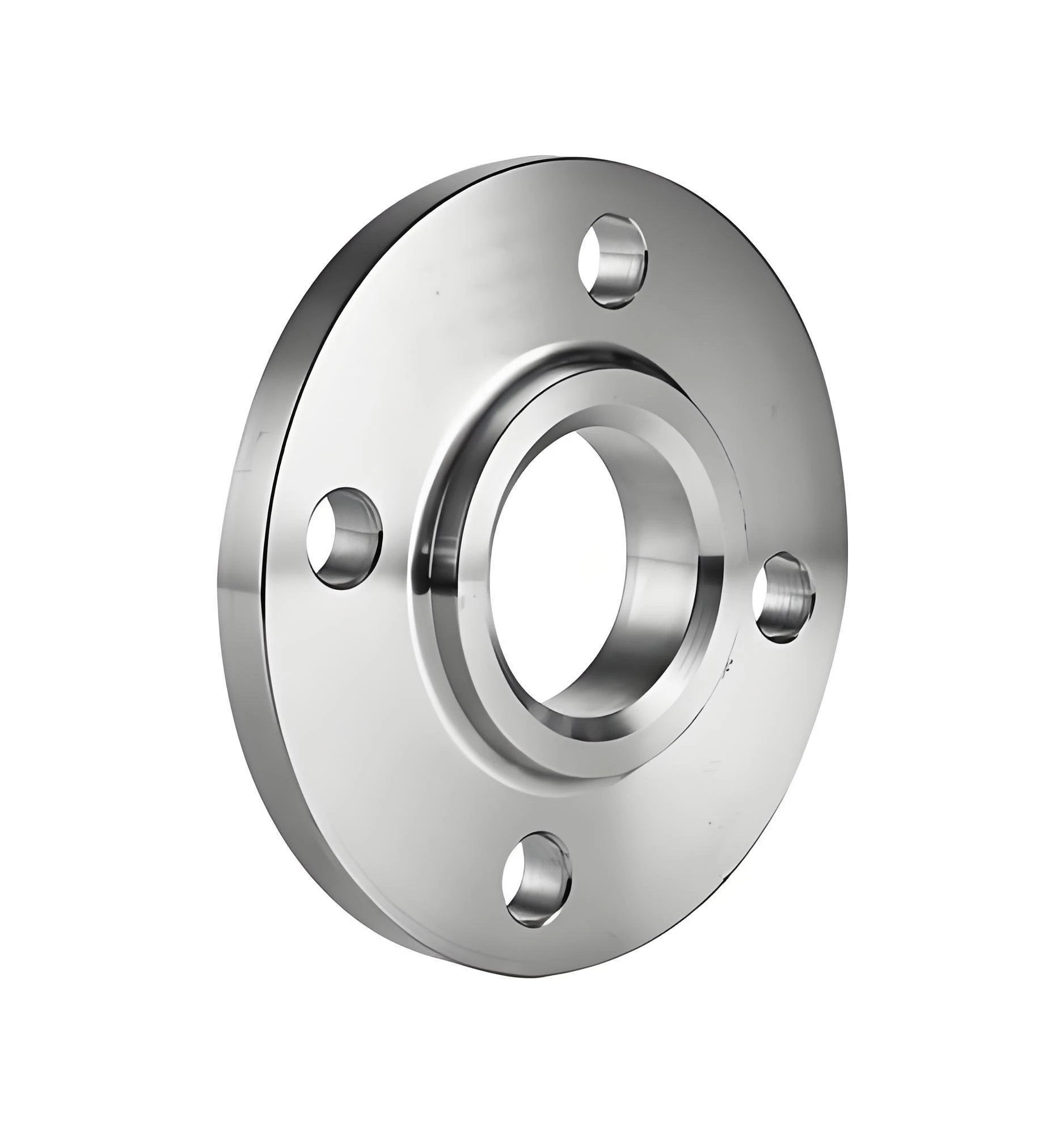

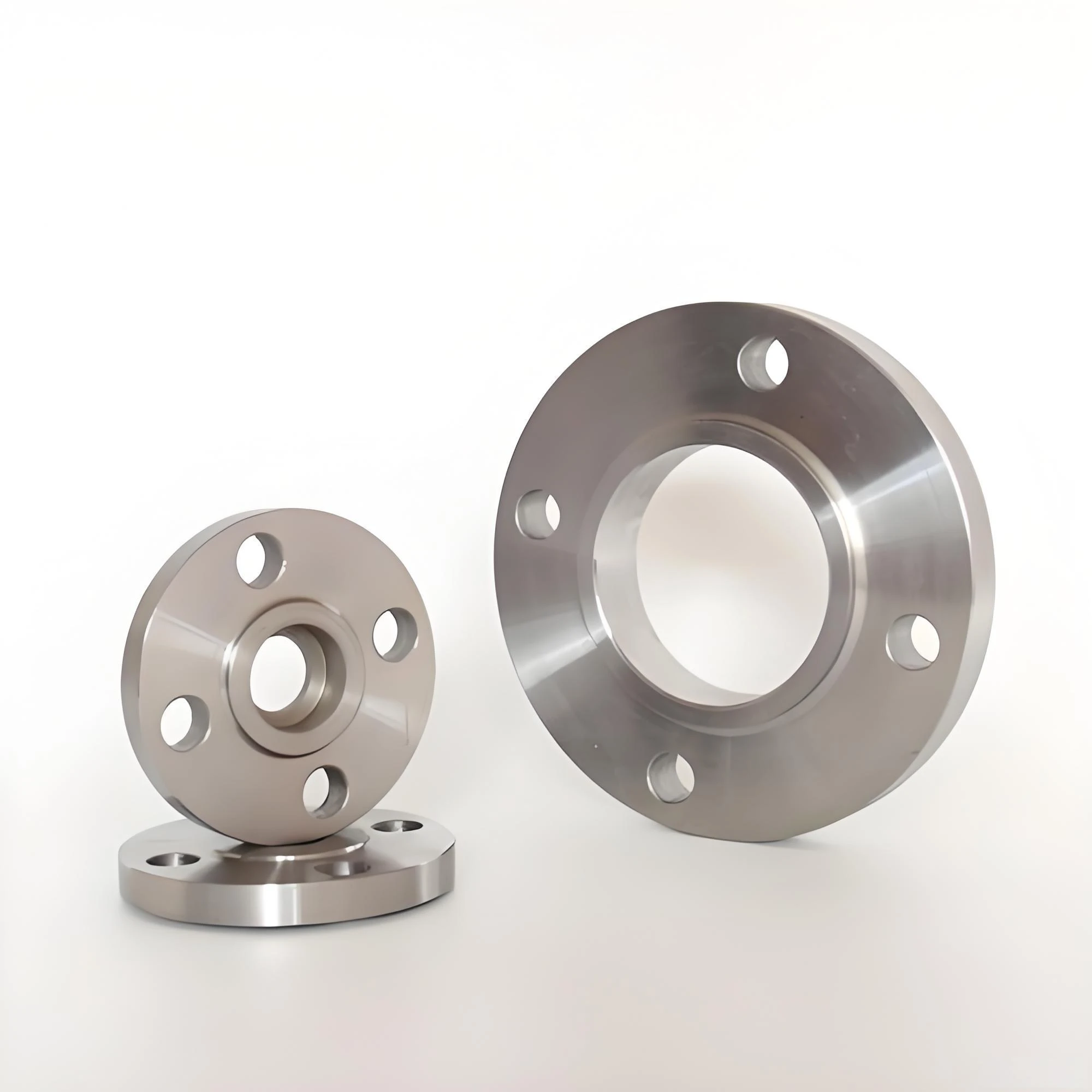

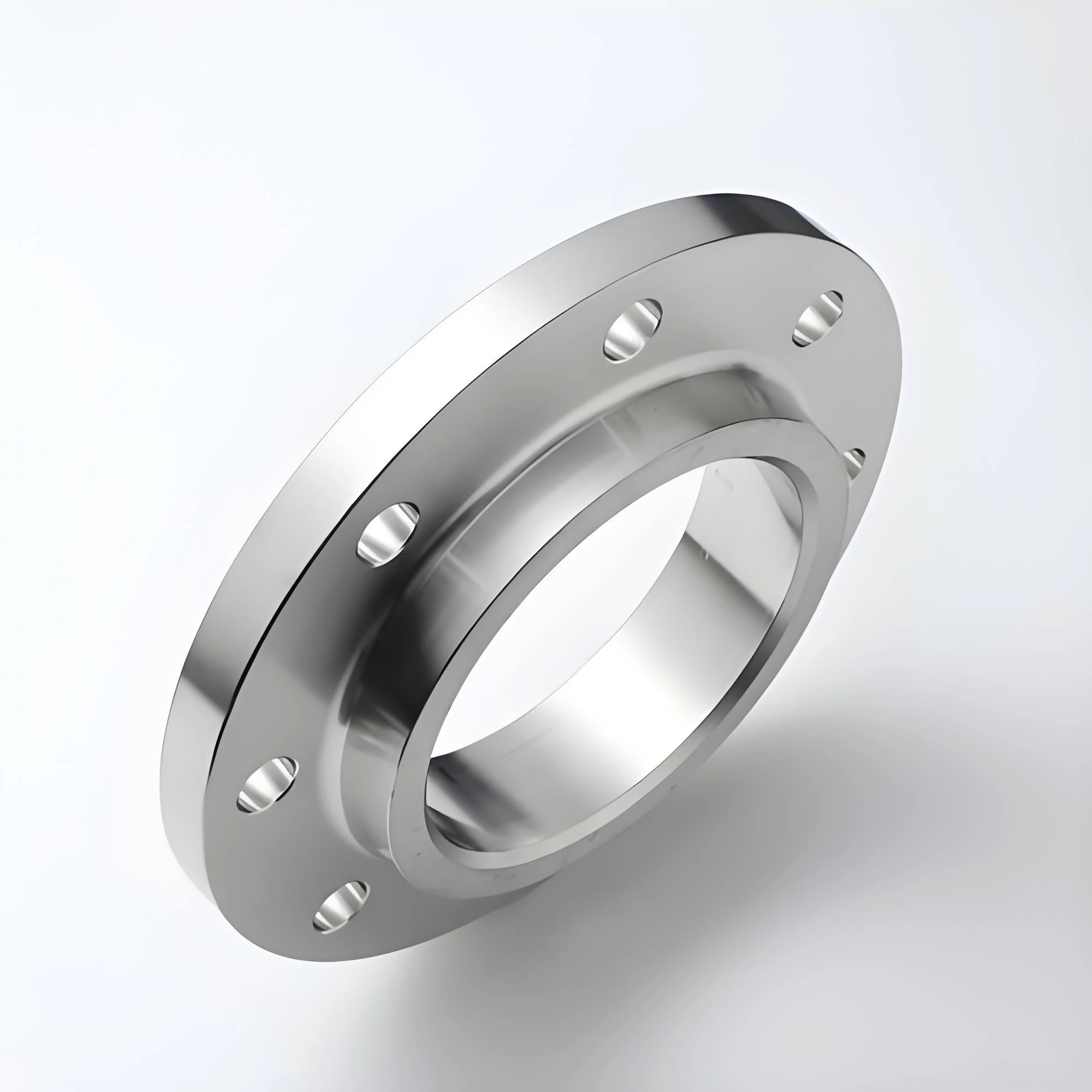

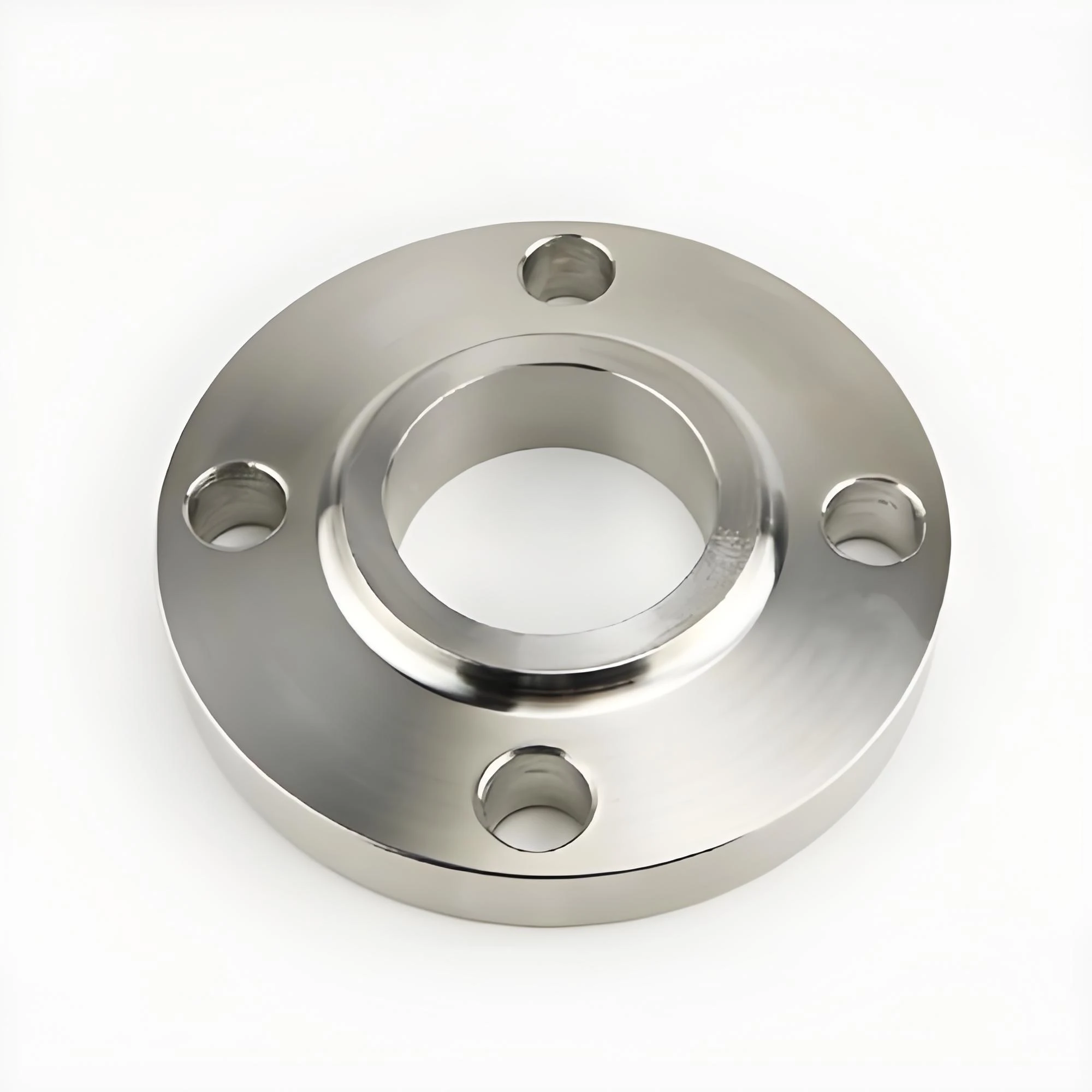

Slip-on flanges are a common type of flange where the pipe is directly inserted into the flange bore and then connected by fillet welding. Due to their simple installation and relatively low requirements for pipe concentricity, they are widely used in various industrial piping systems. These flanges are commonly used in the petroleum, chemical, power, water supply and drainage, shipbuilding, and general industrial sectors, and are suitable for medium-low pressure and normal or medium temperature conditions.
- Materia: ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
- Size: 1/2″ (15 NB) to 48″ (1200NB)
- Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Introduction
Slip-on flanges are typically manufactured from carbon steel, stainless steel, or alloy steel, and feature a simple structure, cost-effectiveness, and ease of welding and installation. Products can be manufactured according to international and industry standards such as ANSI, ASME, DIN, EN, and GB, and can be used with various gaskets to ensure good sealing performance and system reliability.
DHX provides customers with a one-stop piping solution covering product selection, technical support, manufacturing, and delivery. With stable quality and professional service, we help ensure the smooth implementation of your projects. Please feel free to contact us for more detailed information and technical support.
Specifications
| Material | Stainless Steel Flange，Carbon Steel Flange，Carbon Steel Flange，Carbon Steel Flange | |
| Standard | ANSI, ASME, DIN, BS, JIS, GB, ISO etc | |
Type | Welding Neck Flange, Slip On Flange, Blind Flange, Lap Joint Flange, Socket Welding Flange, Threaded Flange, Flat Flange, Long Welding Neck Flange，etc | |
| Surface treatment | Apply anti-rust oil, Epoxy-coated, Hot-dippe galvanized, Electrical galvanized, Yellow lacquer | |
Heat Treatment | Carbon steel | Normalizing |
| Stainless steel | Treatment with solid solving | |
| Alloy steel | Normalizing+Tempering,Quenching | |
| Connection | Welding,Threaded | |
Package | 1: Standard export packaging (Plywood case of outside, plastic cloth of inside).2: As customers’ requirements | |
Application areas | Machine Building, Pressure vessel, Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry and general pipes connecting projects etc… | |

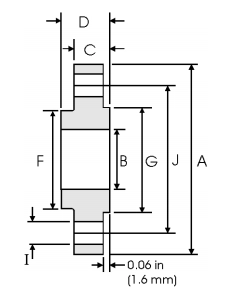

Class 150 lb Slip-on Flange Dimensions
| NPS | A | B | C | D | F | G | H | I | J | W |
| inch | inch | inch | inch | inch | inch | No. of Holes | inch | inch | kg/pc | |
| mm | mm | mm | mm | mm | mm | mm | mm | |||
| 1/2 | 3.500 | 0.880 | 0.440 | 0.620 | 1.190 | 1.380 | 4 | 0.620 | 2.380 | 0.39 |
| 88.90 | 22.40 | 11.20 | 15.70 | 30.20 | 35.10 | 15.70 | 60.45 | |||
| 3/4 | 3.880 | 1.090 | 0.500 | 0.620 | 1.500 | 1.690 | 4 | 0.620 | 2.750 | 0.56 |
| 98.60 | 27.70 | 12.70 | 15.70 | 38.10 | 42.90 | 15.70 | 69.85 | |||
| 1 | 4.250 | 1.360 | 0.560 | 0.690 | 1.940 | 2.000 | 4 | 0.620 | 3.120 | 0.78 |
| 108.0 | 34.50 | 14.20 | 17.50 | 49.30 | 50.80 | 15.70 | 79.25 | |||
| 1¼ | 4.620 | 1.700 | 0.620 | 0.810 | 2.310 | 2.500 | 4 | 0.620 | 3.500 | 1.03 |
| 117.3 | 43.20 | 15.70 | 20.60 | 58.70 | 63.50 | 15.70 | 88.90 | |||
| 1½ | 5.000 | 1.950 | 0.690 | 0.880 | 2.560 | 2.880 | 4 | 0.620 | 3.880 | 1.32 |
| 127.0 | 49.50 | 17.50 | 22.40 | 65.00 | 73.15 | 15.70 | 98.60 | |||
| 2 | 6.000 | 2.440 | 0.750 | 1.000 | 3.060 | 3.620 | 4 | 0.750 | 4.750 | 2.06 |
| 152.4 | 62.00 | 19.10 | 25.40 | 77.70 | 91.90 | 19.10 | 120.7 | |||
| 2½ | 7.000 | 2.940 | 0.880 | 1.120 | 3.560 | 4.120 | 4 | 0.750 | 5.500 | 3.28 |
| 177.8 | 74.70 | 22.40 | 28.40 | 90.40 | 104.6 | 19.10 | 139.7 | |||
| 3 | 7.500 | 3.570 | 0.940 | 1.190 | 4.250 | 5.000 | 4 | 0.750 | 6.000 | 3.85 |
| 190.5 | 90.70 | 23.90 | 30.20 | 108.0 | 127.0 | 19.10 | 152.4 | |||
| 3½ | 8.500 | 4.070 | 0.940 | 1.250 | 4.810 | 5.500 | 8 | 0.750 | 7.000 | 4.81 |
| 215.9 | 103.4 | 23.90 | 31.75 | 122.2 | 139.7 | 19.10 | 177.8 | |||
| 4 | 9.000 | 4.570 | 0.940 | 1.310 | 5.310 | 6.190 | 8 | 0.750 | 7.500 | 5.30 |
| 228.6 | 116.1 | 23.90 | 33.30 | 134.9 | 157.2 | 19.10 | 190.5 | |||
| 5 | 10.00 | 5.660 | 0.940 | 1.440 | 6.440 | 7.310 | 8 | 0.880 | 8.500 | 6.07 |
| 254.0 | 143.8 | 23.90 | 36.60 | 163.6 | 185.7 | 22.40 | 215.9 | |||
| 6 | 11.00 | 6.720 | 1.000 | 1.560 | 7.560 | 8.500 | 8 | 0.880 | 9.500 | 7.45 |
| 279.4 | 170.7 | 25.40 | 39.60 | 192.0 | 215.9 | 22.40 | 241.3 | |||
| 8 | 13.50 | 8.720 | 1.120 | 1.750 | 9.690 | 10.62 | 8 | 0.880 | 11.75 | 12.1 |
| 342.9 | 221.5 | 28.40 | 44.50 | 246.1 | 269.7 | 22.40 | 298.5 | |||
| 10 | 16.00 | 10.88 | 1.190 | 1.940 | 12.00 | 12.75 | 12 | 1.000 | 14.25 | 16.5 |
| 406.4 | 276.3 | 30.20 | 49.30 | 304.8 | 323.9 | 25.40 | 362.0 | |||
| 12 | 19.00 | 12.88 | 1.250 | 2.190 | 14.38 | 15.00 | 12 | 1.000 | 17.00 | 26.2 |
| 482.6 | 327.1 | 31.75 | 55.60 | 365.3 | 381.0 | 25.40 | 431.8 | |||
| 14 | 21.00 | 14.14 | 1.380 | 2.250 | 15.75 | 16.25 | 12 | 1.120 | 18.75 | 34.6 |
| 533.4 | 359.1 | 35.10 | 57.15 | 400.1 | 412.8 | 28.40 | 476.3 | |||
| 16 | 23.50 | 16.16 | 1.440 | 2.500 | 18.00 | 18.50 | 16 | 1.120 | 21.25 | 44.8 |
| 596.9 | 410.5 | 36.60 | 63.50 | 457.2 | 469.9 | 28.40 | 539.8 | |||
| 18 | 25.00 | 18.18 | 1.560 | 2.690 | 19.88 | 21.00 | 16 | 1.250 | 22.75 | 48.9 |
| 635.0 | 461.8 | 39.60 | 68.30 | 505.0 | 533.4 | 31.75 | 577.9 | |||
| 20 | 27.50 | 20.20 | 1.690 | 2.880 | 22.00 | 23.00 | 20 | 1.250 | 25.00 | 61.9 |
| 698.5 | 513.1 | 42.90 | 73.15 | 558.8 | 584.2 | 31.75 | 635.0 | |||
| 24 | 32.00 | 24.25 | 1.880 | 3.250 | 26.12 | 27.25 | 20 | 1.380 | 29.50 | 86.9 |
| 812.8 | 616.0 | 47.80 | 82.60 | 663.4 | 692.2 | 35.10 | 749.3 |
