Butt welded pipe fittings are components connected to pipelines through welding. They are widely used in steel pipes, non-ferrous metal pipes, PE pipes, and other applications, particularly suited for long-distance pipeline systems. However, they are not recommended for pipelines requiring frequent disassembly.
We manufacture high-, medium-, and low-pressure industrial pipe fittings in various materials, including carbon steel, alloy steel, stainless steel, and cryogenic steel—according to international standards such as ISO, ANSI, JIS, DIN, and GB, tailored to customer requirements. Our product range includes butt-weld elbows, bends, tees, crosses, reducers, pipe caps, and flanges.
- Outer diameter: 1/2″~24″ 4″~78″
- Wall thickness: 2mm~150mm
- Bending radius: R=1D~10D
- Product angle: 0°~180°
Introduction
In piping systems, butt-welded pipe fittings serve as critical connecting components widely used in petroleum, chemical, and power industries. By welding to pipelines, they effectively alter pipe direction and diameter, facilitate branch connections, or enable specialized joints. They are particularly suitable for long pipelines and systems requiring infrequent disassembly. DHX product types include 90° elbows, 45° elbows, tees, crosses, pipe caps, concentric reducers, eccentric reducers, and flanged stubs.
The quality of butt-welded pipe fittings directly impacts pipeline system safety and stability. Due to changes in flow direction and cross-sectional area within the pipeline, internal stresses become complex, necessitating high-quality fittings. We offer butt-welded pipe fittings compliant with ASTM A403 and ASTM A234 standards. Widely used in high-pressure piping applications across petrochemical, power generation, aerospace, and metallurgical industries, these fittings withstand extreme pressures while meeting stringent dimensional tolerances.
Whether for high-pressure pipelines, precision equipment, or demanding applications, our butt-welded pipe fittings provide reliable connections and structural support for your systems. Contact us for further information or to customize piping solutions tailored to your requirements.
Specifications
| Type | CARBON STEEL 90D SCH40 ELBOW |
| Size | 1/2″-48″DN15-DN1200 |
| Wall thickness | Sch5-Sch20 SCH40 SCH80 SGP ,STD |
| Standard | ISO, SNSI, JIS, DIN, ASME B16.9 |
| Material | A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5.A403-WP304.A403-WP304L. A403-WP316.A403-WP316L |
| Packaging | Wooden Cases or wooden pallet or as per customers requirement |
| Applications range | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
| Min Order Quantity | According to customer’s requirement |
| Delivery Time | According to customer’s order |
Types of butt weld pipe fittings
DHX offers various types of butt-weld pipe fittings, including elbows, tees, reducers, pipe caps, and flanges, each designed to meet specific pipeline system requirements. We provide fittings in diverse materials, sizes, and pressure ratings to ensure optimal performance and reliability for your project needs. Request a quote today, and our team will assist you in selecting the fittings best suited for your application.
90° Butt Weld Elbow
The 90° butt weld elbow is one of the most commonly used pipe fittings in piping systems. It allows a change in direction by 90 degrees, typically for horizontal or vertical piping routes. It provides smooth flow transitions, reducing friction losses and maintaining the integrity of the fluid or gas being transported. Widely used in industries such as oil & gas, petrochemical, power plants, and water treatment.
- Material: Carbon Steel, Stainless Steel, Alloy Steel
- Size Range: 1/2″ to 48″
- Pressure Rating: ANSI 150, 300, 600, or higher depending on customer needs
If you’re looking for durable and efficient pipe fittings for your system, the 90° butt weld elbow is an excellent choice. Contact us now for a customized solution.
45° Butt Weld Elbow
The 45° butt weld elbow is used to change the direction of the pipeline by 45 degrees, offering a more gradual bend than the 90° elbow. This type of elbow is commonly used in applications where space constraints or a smoother, less abrupt directional change is required. The 45° elbow helps maintain a consistent flow rate with minimal turbulence and is commonly used in HVAC systems, chemical processing, and fluid transportation systems.
- Material: Stainless Steel, Carbon Steel, Nickel Alloys
- Size Range: 1/2″ to 36″
- Wall Thickness: Schedule 40, Schedule 80, or custom
Looking to optimize your piping system with a 45° butt weld elbow? Reach out to us today to get a quote or more details about custom options.
Tee Butt Weld Fitting

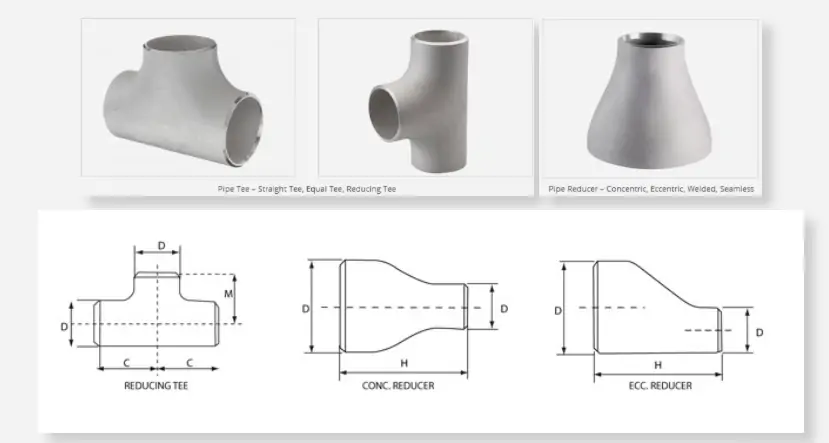

Tee butt weld fittings are essential for creating branches in pipeline systems. They are available as equal tees, where the branch and main pipe are the same size, or reducing tees, which allow for different pipe sizes. These fittings are commonly used to split the flow of fluids or gases, making them indispensable in industries like petrochemical, pharmaceuticals, food processing, and water treatment.
- Material Options: Carbon Steel, Stainless Steel, Alloy Steel
- Size Range: 1/2″ to 24″
- Pressure Rating: 150#, 300#, 600# (custom ratings available)
For seamless pipeline branching, our tee butt weld fittings are designed to meet the highest industry standards. Reach out now for a detailed consultation or quote on your project!
Products Show
Features
High-Strength Connections
Butt-welded pipe fittings provide robust, durable connections through welding, suitable for withstanding high pressure, high temperatures, and harsh environments.
Superior Corrosion Resistance
Available in materials such as stainless steel and carbon steel, offering excellent corrosion resistance for diverse chemical media and operating conditions.
Leak-Free Joints
Welded joints eliminate threads and loosening, ensuring long-term stability and efficient sealing in piping systems.
Diverse Specifications
Available in multiple diameters, wall thicknesses, and pressure ratings to meet diverse pipeline system design requirements.
High-Temperature and High-Pressure Resistance
Suitable for high-temperature and high-pressure applications, widely used in pipeline systems across petroleum, chemical, power, and other industries.
Easy Installation
Welding simplifies pipeline system installation while ensuring joint strength and long-term reliability.
Get a Quote Now
We offer butt-welded pipe fittings, steel pipes, and flanges in various materials and specifications to meet diverse pipeline engineering requirements. Our experienced technical team provides effective solutions tailored to your specific needs. Contact us today for a quote and consultation!
