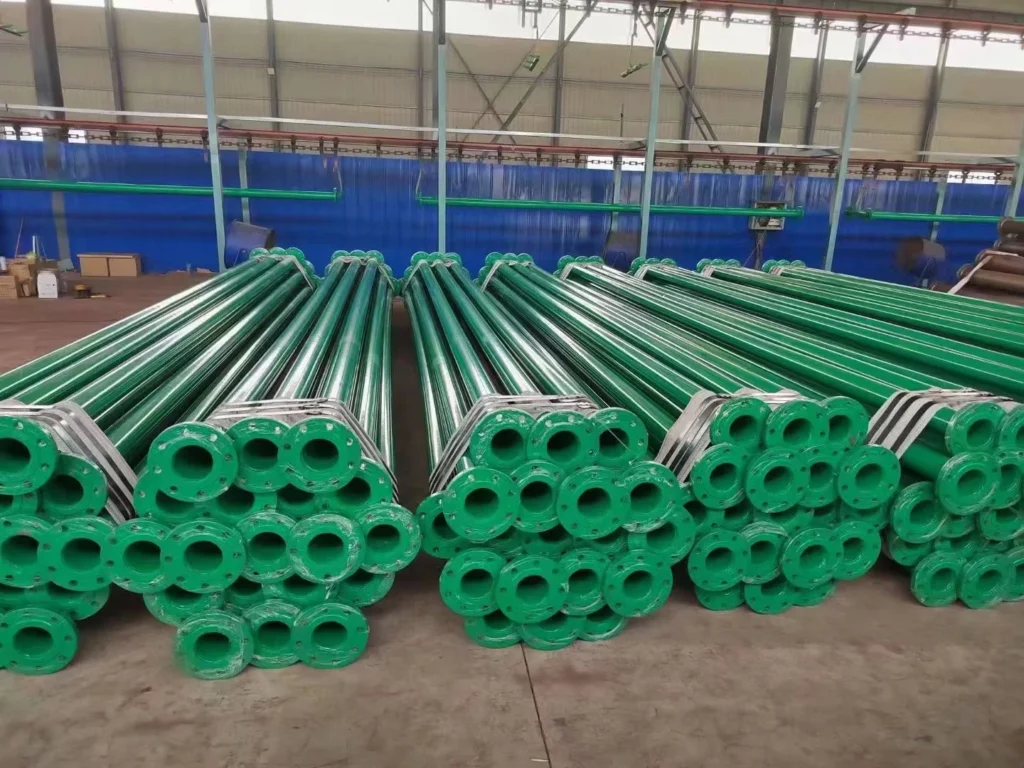

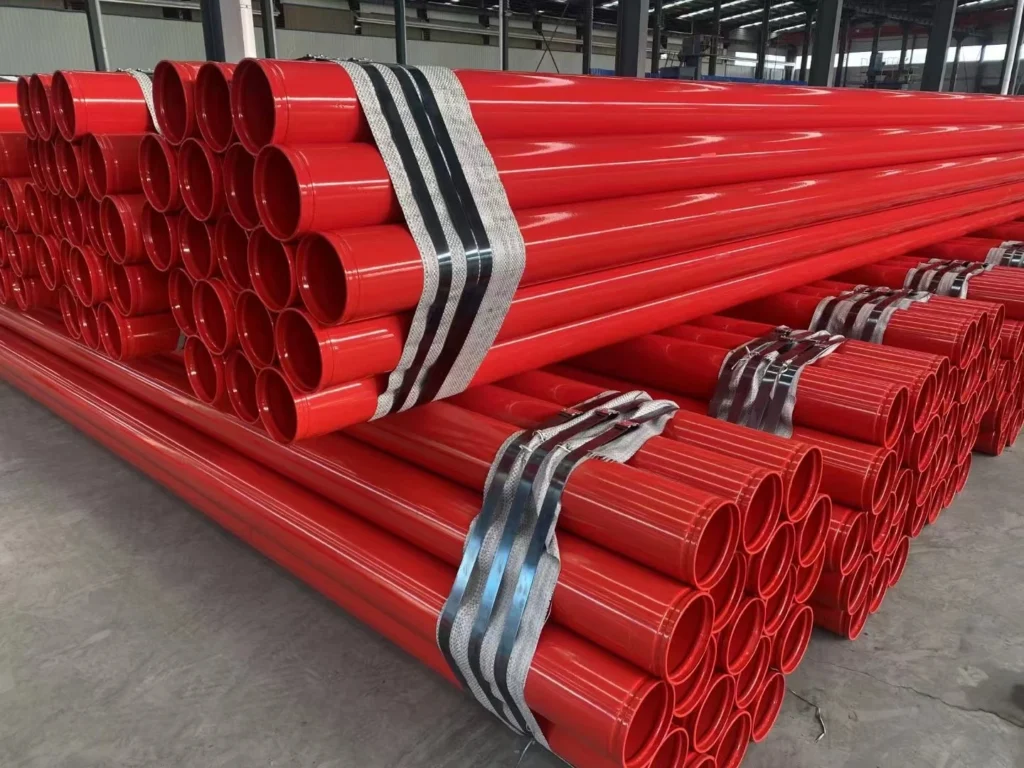

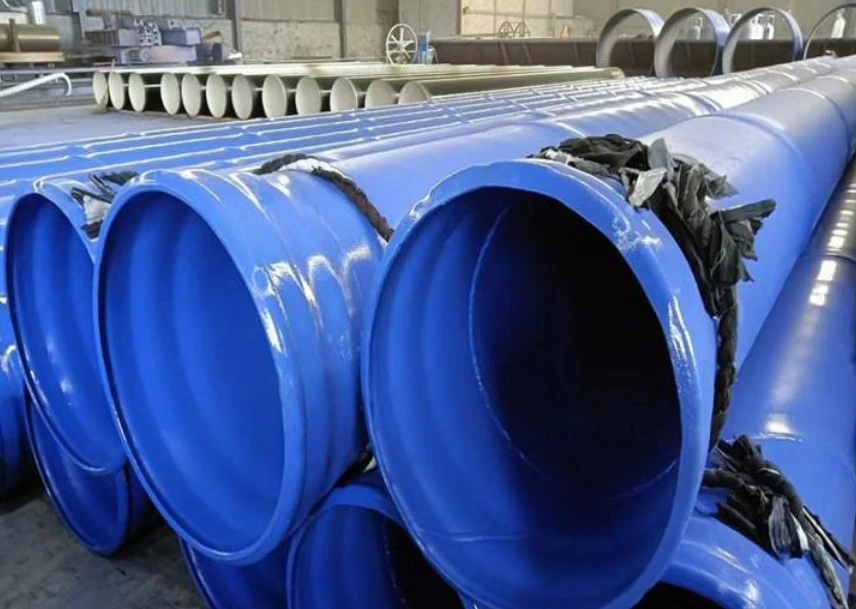

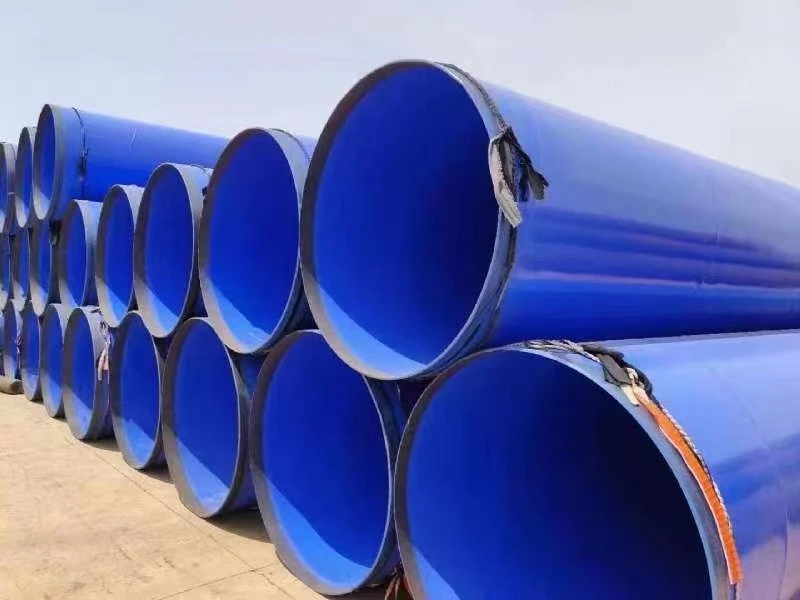

Anti-corrosion PE Powder coated steel pipes are steel pipe products treated with advanced powder coating technology, offering outstanding corrosion resistance, weather resistance, and aesthetic appeal. Their surfaces undergo uniform powder coating, effectively preventing oxidation and rust while extending service life. These pipes are widely used in construction, energy, chemical, automotive, and other industrial sectors.
- Coating Material: PE (Polyethylene) or EP (Epoxy Resin)
- Outer Diameter: 219 mm ~ 2020 mm
- Length: 4 m, 6 m, 12 m, 18 m, 21 m
- Applications: For natural gas, oil, water and sewage, and piping systems
- Coating Standards: DIN 30670, DIN 30671, DIN 30678, SY/T0413-2002, etc.
Introduction
Corrosion-resistant polyethylene powder-coated steel pipes offer excellent corrosion resistance, making them an ideal solution for various pipeline applications, including natural gas, oil, water, and wastewater systems. The pipes are coated with a high-performance polyethylene (PE) layer, providing excellent resistance to environmental corrosion and a long service life.
DHX Piping specializes in the production and processing of powder-coated steel pipes, seamless steel pipes, welded steel pipes, butt-welded pipe fittings, high-pressure forged pipe fittings, and flanges. Our products are manufactured from carbon steel, stainless steel, and alloy steel, complying with API 5L X42 PSL2, NACE MR0175, and ISO 15156 standards. We provide comprehensive services including transportation, inventory management, and quality control. Additionally, we offer custom fabrication services for pre-engineered piping systems, such as flanged pipes and flanged elbows, along with cladding services for specialty alloys. Non-standard components can be manufactured to customer drawings to meet diverse requirements.
Features of powder-coated steel pipes
- Coating Types: Available in PE coating, double-layer PE coating, and triple-layer PE coating options, offering enhanced protection and corrosion resistance.
- Ends: Pipes are available with plain, bevel, threaded, or socket connections. Optional plastic caps and steel rings are available for enhanced protection.
- Surface Coating: A double-layer polyethylene coating (2 mm to 4.5 mm thick) ensures effective corrosion protection and enhanced durability.
- Applications: Suitable for natural gas, oil, water, and wastewater pipelines, ensuring reliable operation in both underground and above-ground installations.
- Packaging: The pipes are wrapped in waterproof paper and bundled with steel straps. Each bundle has two identification tags for easy tracking.
Specifications
| Parameter | Description |
|---|---|
| Coating Material | PE (Polyethylene) or EP (Epoxy Resin) |
| General Colors | Black, Gray, Blue, Red, White, Green |
| Coating Thickness | PE (Modified Polyethylene) coating: 400μm—1000μm; EP (Epoxy Resin) spraying thickness: 100μm—400μm |
| Coating Method | PE: Hot-dip plastic coating; EP: Internal and external spraying |
| Product Specifications | DN15—DN1660 |
| Ambient Temperature | -30°C to 120°C |
| Connection Methods | Threaded (DN15-DN100), Grooved (DN65-DN400), Flanged (suitable for any size), Welded, Bimetallic connection, Socket, Pipe section, and Sealed connection |
Get a Quote Now
We offer butt-welded pipe fittings, steel pipes, and flanges in various materials and specifications to meet diverse pipeline engineering requirements. Our experienced technical team provides effective solutions tailored to your specific needs. Contact us today for a quote and consultation!
