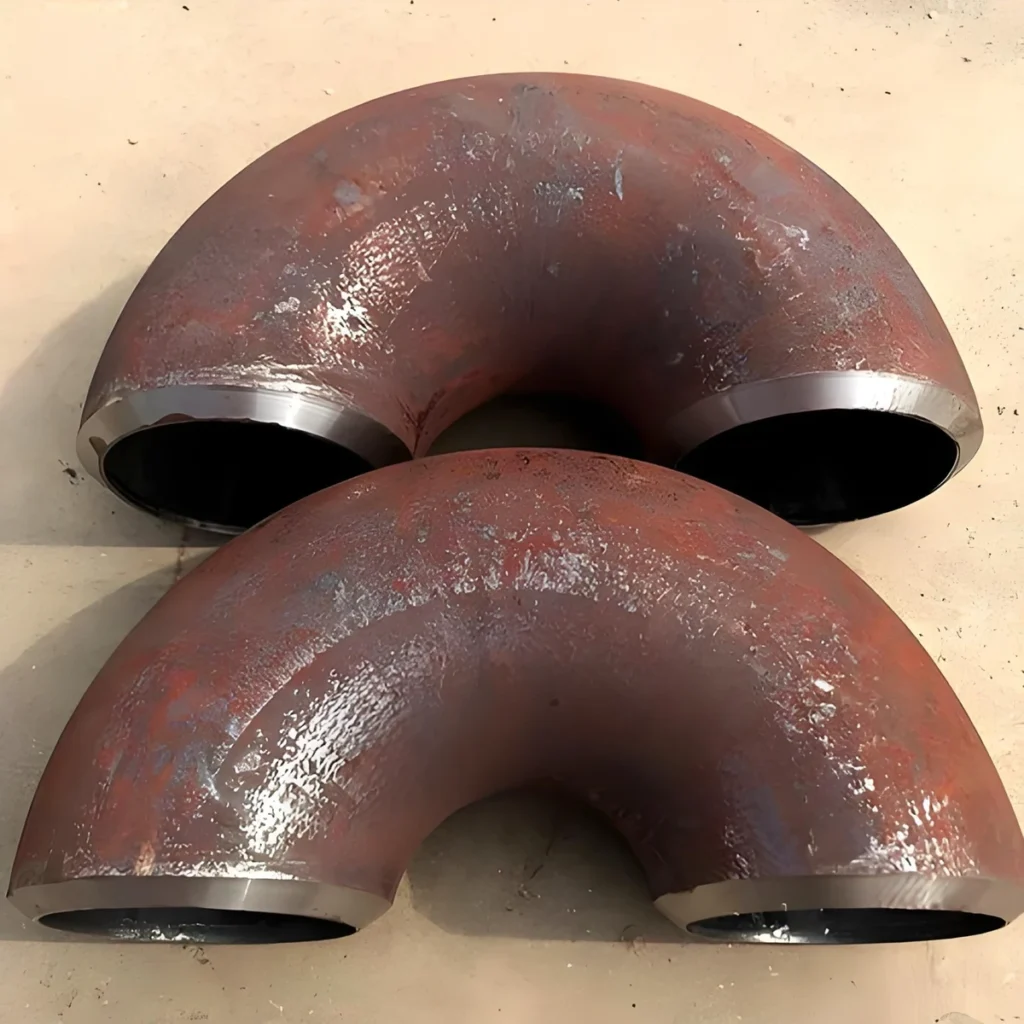

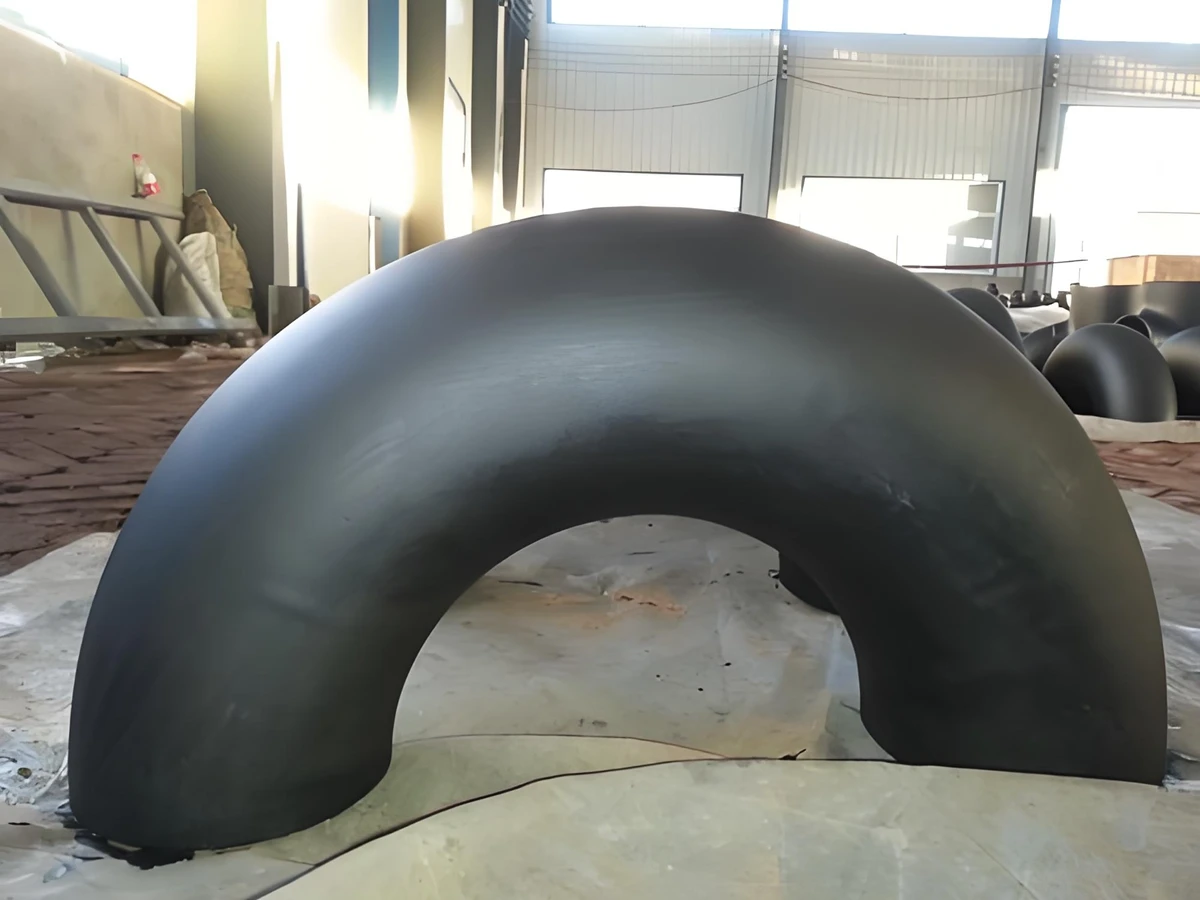

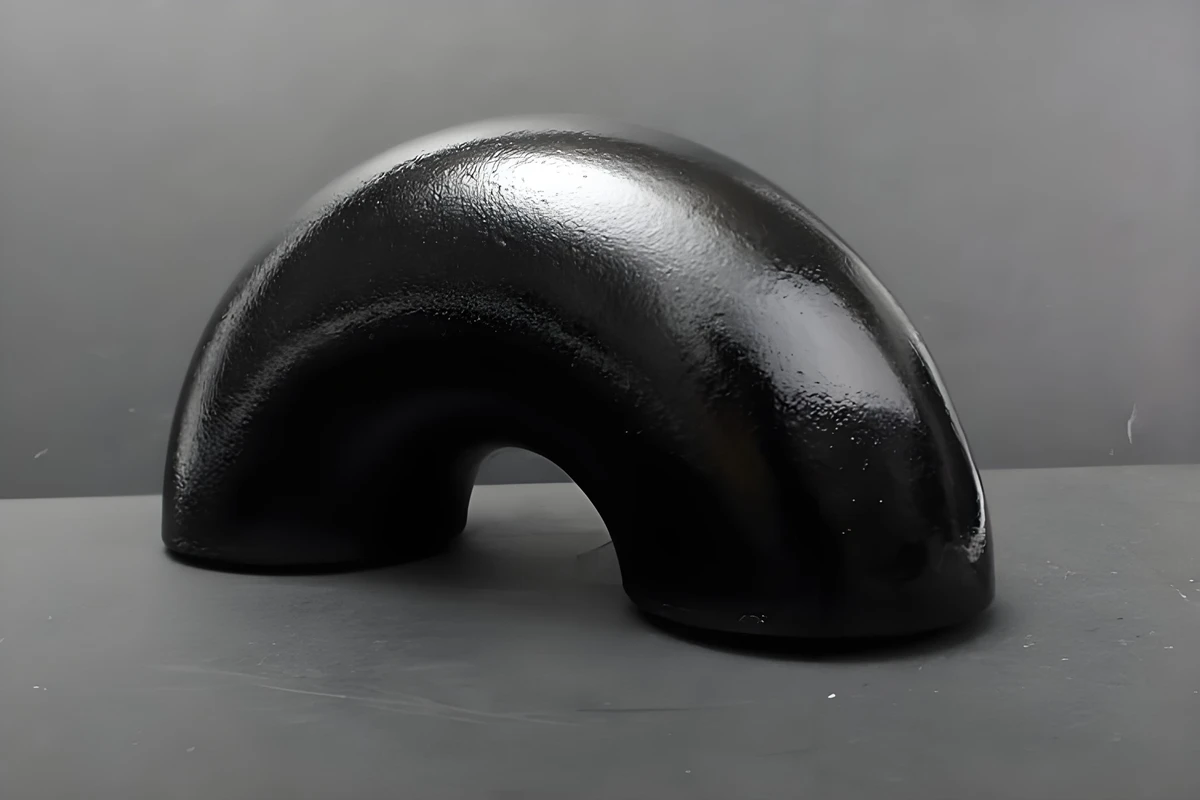

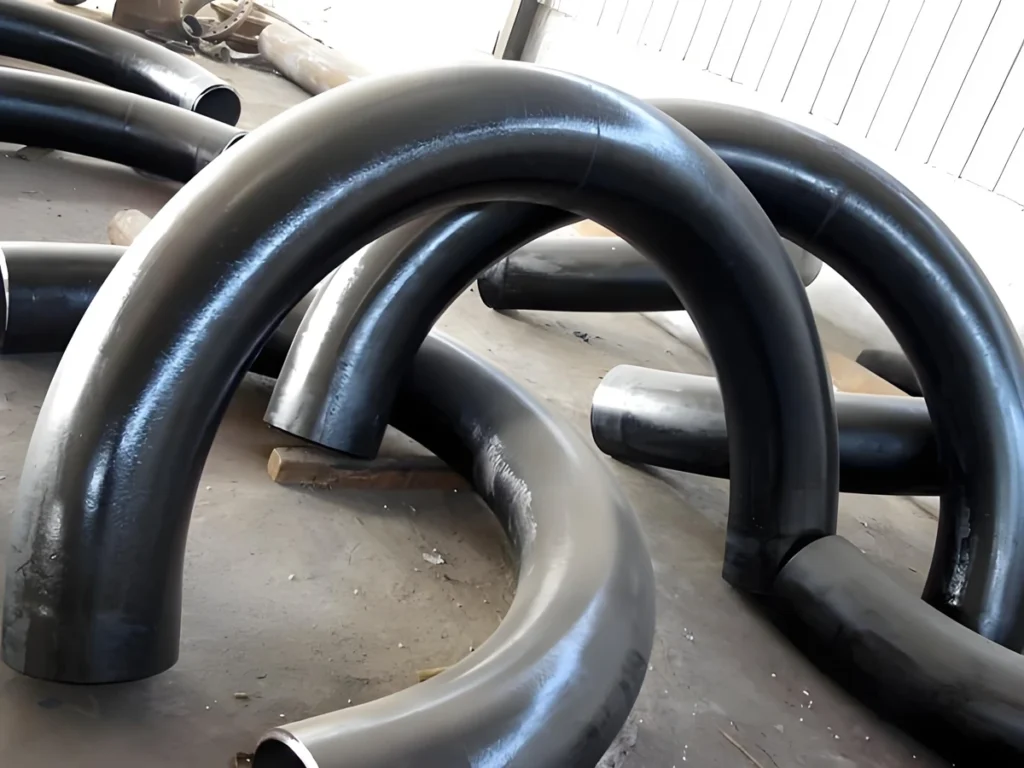

180° Elbow | Seamless & Welded Pipe Fittings
180° Elbow is a critical pipe fitting in pipeline systems that changes the flow direction by 180°. According to engineering needs, elbows are commonly available in 45°, 90°, and 180°, while special angles such as 60° can also be produced.
The 180° Elbow is widely used in water disposal, chemical engineering, shipbuilding, nuclear energy, natural gas, petroleum, and electric power industries. It ensures smooth fluid flow and reliable pipeline performance.
- Technology: Seamless; Welded
- Material: Carbon Steel, Alloy Steel, Stainless Steel (see detailed material table below)
- Standard: ASME B16.9; GB12459; DIN2615; GOST17375; JIS B2311
Introduction
The 180° Elbow is manufactured using advanced hot push forming technology. During the process, the pipe blank is heated and bent on a specialized mold to ensure uniform wall thickness and a smooth, aesthetic appearance. The hot push process allows mass production with consistent quality, making it the main forming method for carbon steel, alloy steel, and stainless steel elbows.
Heating methods include medium/high-frequency induction, flame heating, or reverberatory furnace heating, depending on product specifications and energy considerations.
Product Specifications
DHX Customization & Technical Support:
DHX offers full customization services for 180° Elbows, including OEM and ODM solutions. Our technical team provides engineering guidance, material selection, and quality inspection support, ensuring the final product meets your exact project requirements.
| Item | Details |
|---|---|
| Product | 180° Elbow |
| Technology | Seamless; Welded |
| Size | Seamless: DN15-DN1200Welded: DN200-DN2000 |
| Thickness | SCH10; SCH20; SCH30; STD; SCH40; SCH60; SCH80; SCH100; SCH120; SCH160; XS; XXS; High Thickness up to 150mm |
| Radius | 1D; 1.5D; 2D; 2.5D; 3D; 4D; 5D; 6D; 10D |
| Material | A234-WPB; A420-WPL3/WPL6; WP5; WP9; WP11; WP22; NACE MR-0175API5L-X42/46/52/56/60/65/70/80 (NS/MS)403-WP304/L; WP316/L; S31803; 2205 |
| Standard | ASME B16.9; GB12459; DIN2615; GOST17375; JIS B2311 |
| Coating | Anti-corrosive paint; 3LPE Coating; Galvanized (Hot Dipped Electro-Plating); etc. |
| Inspection | Chemical elements; Mechanical properties; Metallographic test; HIC/SSC; Heat treatment; Ultrasonic test; Penetration test; Magnetic powder test; X-ray test; Hydraulic pressure test; Blasting test; Customized inspection available |
| Application | Water disposal; Electric power; Chemical engineering; Shipbuilding; Nuclear energy; Garbage disposal; Natural gas; Petroleum oil |
| Note | DHX provides fully customized solutions according to customer requirements |
Product Features & Benefits
High-Quality Materials
Manufactured using premium materials for superior durability, strength, and corrosion resistance.
Customization Options
Flexible OEM and ODM services allow tailoring of dimensions, materials, and coatings to customer specifications.
Polished Surface Finish
Smooth and visually appealing finish enhances aesthetics and ensures easy cleaning.
Standard Compliance
Precision-engineered to meet multiple international standards for various industrial applications.
Exceptional Performance
Made from high-strength materials with excellent toughness, corrosion resistance, and thermal conductivity, ideal for demanding industrial environments.
Get a Quote Now
We offer butt-welded pipe fittings, steel pipes, and flanges in various materials and specifications to meet diverse pipeline engineering requirements. Our experienced technical team provides effective solutions tailored to your specific needs. Contact us today for a quote and consultation!
